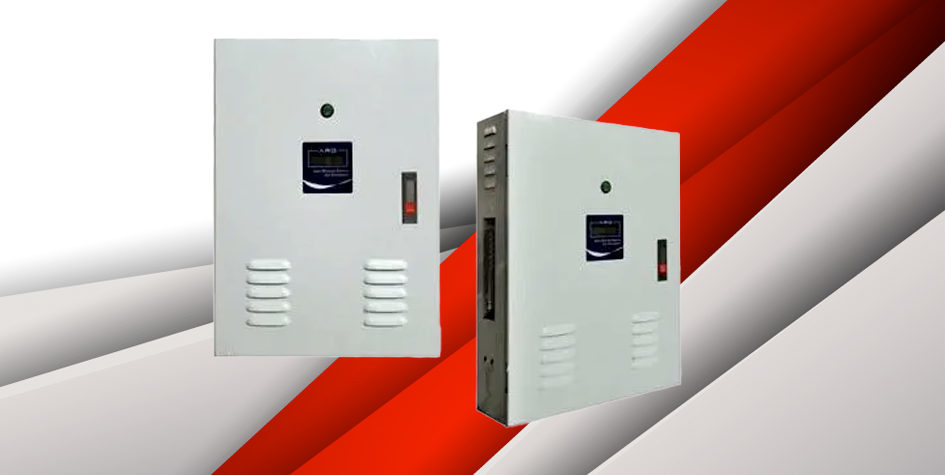

Elevator UPS
Elevator UPS – Reliable Backup Power for Safe Elevator Operation
OverView:
Our Elevator UPS (Uninterruptible Power Supply) system is designed to keep your elevator motor, controller, and safety circuits running during a power failure. Built specifically for the lift industry, our UPS ensures smooth evacuation, zero passenger trapping, and safe landing even during complete mains outage.
Why Elevator UPS is Essential:
An elevator UPS is manufactured by taking several important factors into consideration, such as the duration of a common power cut, capacity of the lift motor, type of elevator, whether it would be used in a residential or commercial area, etc.
Key Features:
- Dedicated UPS for Elevator Motors Designed to support gearless and geared elevator motors, including permanent magnet machines.
- Smooth Emergency Landing The UPS allows the elevator to move safely to the nearest floor and open the doors.
- Pure Sine Wave Output Ensures smooth, noise-free operation of all elevator electronics.
- High Surge Capacity Handles starting torque and motor inrush current required by elevator drives.
- Automatic Bypass & Zero Transfer Time No interruption to operation when switching from mains to UPS.
- Fire & Safety Compliance Meets international elevator safety standards for emergency operation.
- Supports Elevator Control Panels Compatible with all major elevator controllers including Fuji, Monarch, STEP, BST, and other global brands.
Applications:
- Residential Buildings
- Commercial Towers
- Hospitals & Clinics
- Hotels and Shopping Malls
- Industrial Facilities
- Villas and Home Lifts
Technical Advantages:
Our Elevator Motor UPS is built with high-performance IGBT and DSP technology to ensure:
- Stable output for VFD-based elevator drives
- Intelligent battery management for long service life
- Seamless integration with existing lift systems
- Optional remote monitoring and BMS connectivity
Battery Options:
- VRLA/AGM Battery
- Lithium-Ion Battery
- Long-backup battery bank options available
Why Choose Us:
We supply advanced Lift UPS solutions designed for the elevator industry in the UAE and Middle East. With strong engineering background and 30+ years experience in automation, control, and elevator modernization, we offer:
- Professional site survey
- Correct UPS sizing for elevator motors
- Installation & commissioning support
- Local stock and after-sales service
Elevator UPS details
| MODEL | NV65AP-ARD-10 | NV65AP-ARD-15 | NV65AP-ARD-25 | NV65AP-ARD-35 | NV65AP-ARD-45 | NV65AP-ARD-60 |
|---|---|---|---|---|---|---|
| Capacity | 7.5HP | 11HP | 22HP | 35HP | 39HP | 47HP |
| AC Input | 415V / 220VAC + 15%-20% Three Phase Input. 50/60Hz ± 10% |
|||||
| DC Voltage | 48Vdc / 60Vdc / 72Vdc / 96Vdc / 120Vdc / 144Vdc / 180Vdc |
|||||
| Charger Type | Controlled Rectifier CVCC |
|||||
| Charging Time | 10 Hours for 90% of Full Battery Capacity |
|||||
| Inverter Technology | IGBT based PWM Sine Wave |
|||||
| Inverter Output Voltage | 400V / 415V / 200Vac Three Phase 50/60Hz ±0.1Hz |
|||||
| Inverter Efficiency | 85% |
|||||
| Inverter Overload | 105% continuous |
|||||
| Inverter Harmonic Distortion | ＜3% on Linear load |
|||||
| Inverter Crest Factor | 4:1 |
|||||
| Inverter Power Factor | 0.8 |
|||||
| Inverter Phase Displacement | 120°±1° |
|||||
| Dimension (L×W×D) | 530×400×195 mm |
|||||
| LCD Display | AC normal;Inverter normal; Battery low and overload |
|||||
| Protection | Output Overload and Short circuit & DC Under and Over Voltage |
|||||
